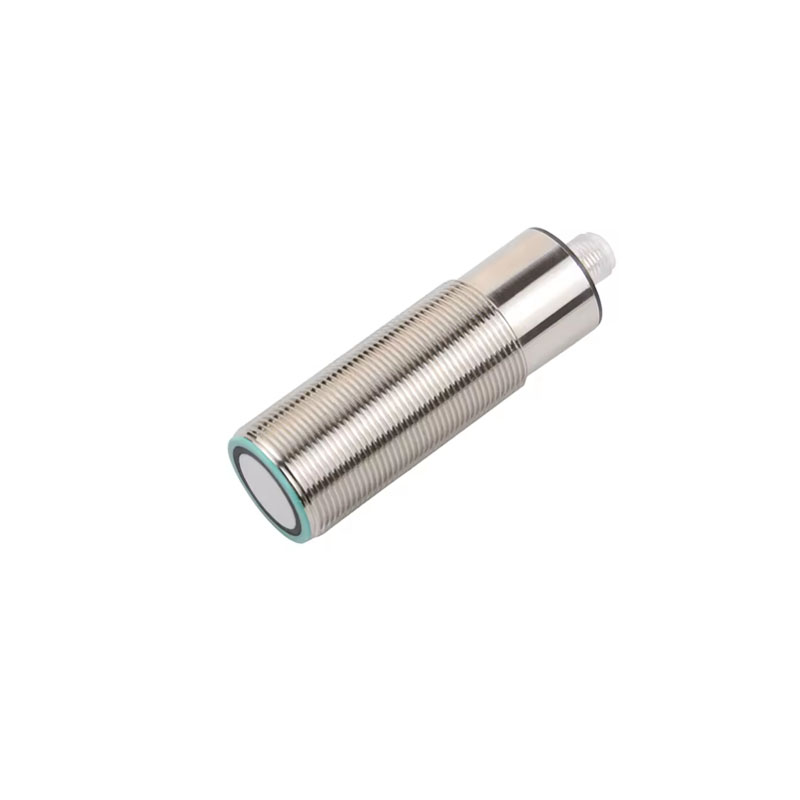

M30 Ultrasonic Sensor SN 2000mm – UBX200-GM30, 80-2000mm, NPN/PNP Single or Dual Programmable Switch Outputs, IP65
M30 ultrasonic sensor SN 2000mm (UBX200-GM30) — non-contact detection & level switching from 80 to 2000mm in a metal M30 body. Four switching versions: D4 NPN, D5 PNP, D6 2×PNP & D7 2×NPN programmable NO/NC. ≈180KHz sensing independent of color/transparency/dust/steam/light; adjustable range via adjustment line; 10-30VDC, IP65, M12×1 5-pin or 2m cable. ≤0.1% accuracy. BXUAN factory direct.
- Overview
- Related Products
| Product model | UBX50-GM30-D4-H5 | UBX200-GM30-D4-H5 | UBX50-GM30-D6-H5 | UBX200-GM30-D6-H5 | |
| UBX50-GM30-D5-H5 | UBX200-GM30-D5-H5 | UBX50-GM30-D7-H5 | UBX200-GM30-D7-H5 | ||
| Detection range | 50...500mm | 80...2000mm | 50...500mm | 80...2000mm | |
| Non-detection zone | 0mm ..50mm | 0mm ..80mm | 0mm ..50mm | 0mm ..80mm | |
| Transducer frequency | About 380KHz | About 180KHZ | About 380KHz | About 180KHZ | |
| response time | About 50ms | About 150ms | About 50ms | About 150ms | |
| Standard target version | ≤ 10Hz | ≤ 3.3Hz | ≤ 7Hz | ≤ 2.5Hz | |
| type of output | D4 :NPN normally open/normally closed D6：2 switch outputs PNP, NO/NC, programmable | ||||
| D5：PNP normally open/normally closed D7：2 switch outputs NPN, NO/NC, programmable | |||||
| Rated working current | 200mA Passage/overload protection | 100 mA , short-circuit/overload protec | |||
| accuracy of rated working | ≤ 0.5% | ≤ 0.1% | |||
| working voltage | 10-30V DC ripple 10% | ||||
| Range adjustment | Adjust the farthest and nearest range through the adjusting line | ||||
| Degree of protection | IP65 | ||||
| Connection mode | Connector plug M12 x 1 , 5-pin/2m PVC cable | ||||
| LED yellow light | The yellow light of the switch status indicator flashes. The target is detected under the set status | ||||
| LED red light | The red light is always on: error Red light flashing: no target is detected in the set state |
||||
| Product model | UCX50-GM30-DI-H5 | UCX200-GM30-DI-H5 | |||
| UCX50-GM30-DU-H5 | UCX200-GM30-DU-H5 | ||||
| Detection range | 50...500mm | 70...1000mm | |||
| Non-detection zone | 0mm ..50mm | 0mm ..70mm | |||
| Transducer frequency | About 380KHz | About 205KHZ | |||
| response time | About 50ms | About125ms | |||
| Standard target version | 100mm*100mm | ||||
| type of output | DI :Passage/overload protection | ||||
| DU：0-10V | |||||
| working voltage | DI:10-30V DC ripple 10% DU:15-30V DC ripple 10% | ||||
| accuracy of rated working | ≤ 0.1% | ||||
| Range adjustment | Adjust the farthest and nearest range through the adjusting line | ||||
| Degree of protection | IP65 | ||||
| Connection mode | Connector plug M12 x 1 , 5-pin/2m PVC cable | ||||
| LED yellow light | The yellow light of the switch status indicator flashes. The target is detected under the set status | ||||
| LED red light | The red light is always on: error Red light flashing: no target is detected in the set state |
||||
