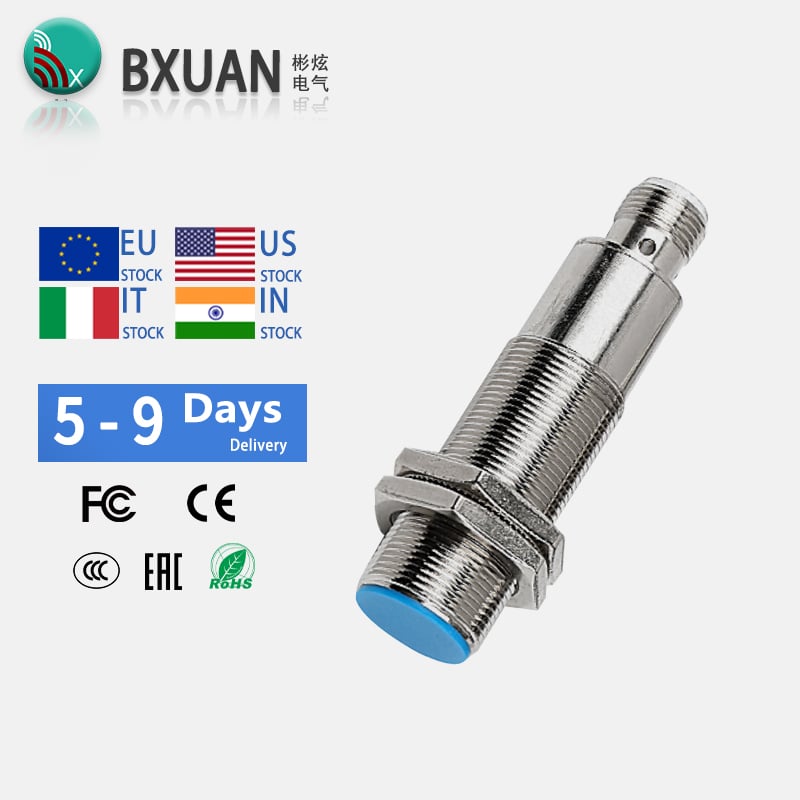

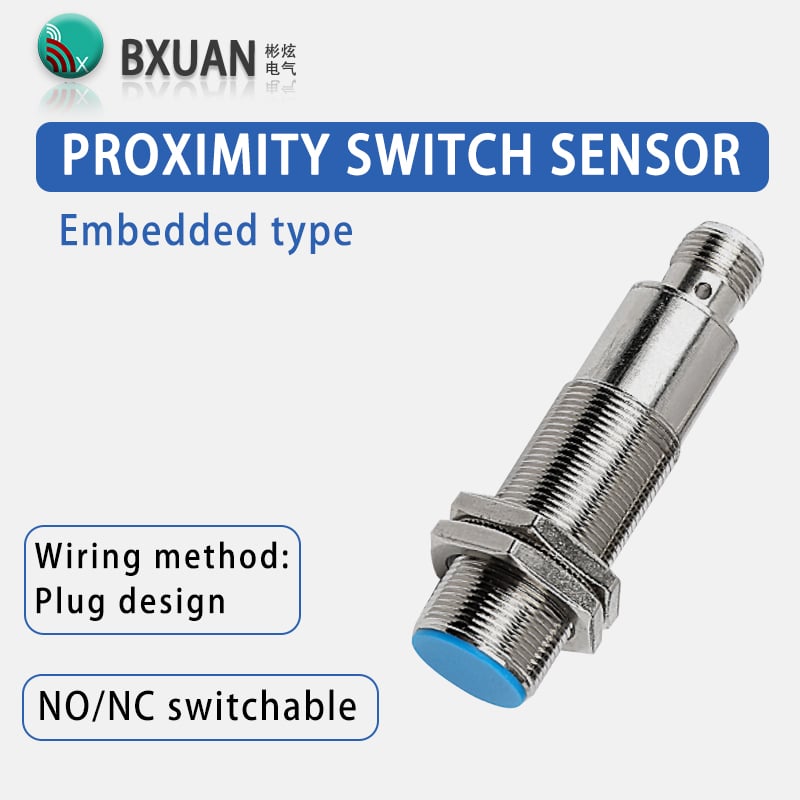

M18 Non-Flush Analog Proximity Sensor – 12mm Continuous Output, DC 10-30V, IP67
M18 non-flush analog proximity sensor — 12mm range (0-7.6mm reliable) with continuous 0-10V output for metal distance measurement. Non-flush mounting, no embedding needed. DC 10-30V, IP67, M12 connector, BXUAN factory direct.
- Overview
- Related Products
| rofile data | M18*1mm | ||
| Installation method | Non-Flushed | ||
| Detection distance | 8mm | ||
| Reliable detection distance | 0-7.6mm | ||
| analog output | 0-10V | BIMT8-GM18-U | |
| 4-20mA | BIMT8-GM18-I | ||
| analog output | 0-5V | BIMT8-GM18-T | |
| 0-20mA | BIMT8-GM18-Y | ||
| Supply voltage | Voltage Output：DC10-30V | ||
| Current Output：DC10-30V | |||
| Linearity | Voltage Output：5% | ||
| Current Output：5% | |||
| Repeatability | Voltage Output：3% | ||
| Current Output：3% | |||
| Load | Voltage Output：RL ≤ 470 Ω | ||
| Current Output：RL ≥ 4.7KΩ | |||
| Insulation voltage | Voltage Output：1000V/AC 60S | ||
| Current Output：1000V/AC 60S | |||
| Short circuit protection/reverse connection protection | Voltage Output：have/have | ||
| Current Output：have/have | |||
| indicator light | Red LED | ||
| Degree of protection | Ip67 | ||
| Shell material | Nickel Plated Brass | ||
| Test surface material | PBT | ||
| Connection mode | M12 Connector | ||
