M18 All-Metal Non-Flush Inductive Proximity Sensor – 8mm Unshielded Detection (0-7.6mm Reliable, No Range Loss), Stainless Body & Face, DC 3-Wire/4-Wire
M18 all-metal non-flush inductive proximity sensor — 8mm±10% detection, reliable 0-7.6mm, NO range loss vs standard M18 non-flush. Stainless body and metal face resist impact, weld spatter and washdown. Unshielded mount with metal-free zone. DC 3-wire/4-wire NPN. For welding cells, presses, foundries. BXUAN factory direct.
- Overview
- Related Products

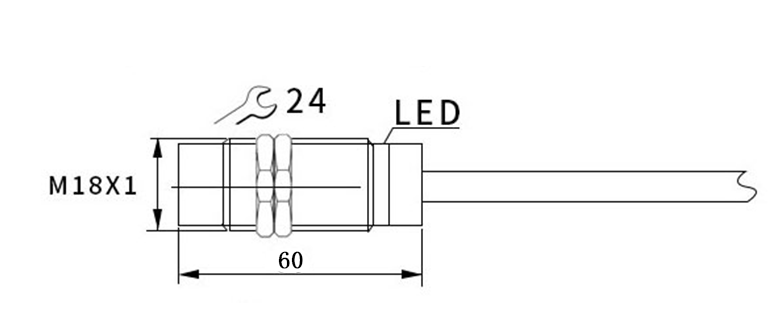

| profile data | M18*1mm | ||
| Installation method | Non-Flushed | ||
| Detection distance | 8mm±10% | ||
| Reliable detection distance | 0-7.6mm | ||
| DC 3- wire / DC 4-wire | NPN | NO | BIMN8-GM18-N1 |
| NC | BIMN8-GM18-N2 | ||
| PNP | NO | BIMN8-GM18-P1 | |
| NC | BIMN8-GM18-P2 | ||
| DC 2 wire | NO | BIMN8-GM18-D1 | |
| NC | BIMN8-GM18-D2 | ||
| AC 2-wire | NO | BIMN8-GM18-A1 | |
| NC | BIMN8-GM18-A2 | ||
| Supply voltage | DC 3-wire：DC10-30V | ||
| DC 2-wire：DC10-30V | |||
| AC 2-wire：AC20-250V | |||
| Voltage drop | DC 3-wire：<1.5V | ||
| DC 2-wire：<6V | |||
| AC 2-wire: <8V | |||
| load current | DC 3-wire：<200mA | ||
| DC 2-wire：<200mA | |||
| AC 2-wire：300mA | |||
| Current consumption | DC 3-wire：<10mA | ||
| DC 2-wire：<0.8mA | |||
| AC 2-wire：<2.5V | |||
| Leakage current | DC 3-wire：<0.01mA | ||
| DC 2-wire：<0.8mA | |||
| AC 2-wire：<2.5V | |||
| Insulation voltage | DC 3-wire：1000V/AC 60S | ||
| DC 2-wire：1000V/AC 60S | |||
| AC 2-wire：2000V/AC 60S | |||
| switching frequency | DC 3-wire：800Hz | ||
| DC 2-wire：500Hz | |||
| AC 2-wire：25Hz | |||
| Short circuit protection/reverse connection protection | DC 3-wire：have/have | ||
| DC 2-wire：have/have | |||
| AC 2-wire： | |||
| indicator light | Red LED | ||
| Degree of protection | Ip67 | ||
| Shell material | all-metal | ||
| Test surface material | all-metal | ||
| Connection mode | 2m PVC cable | ||
